Sprayers Pumps Assembly Machine

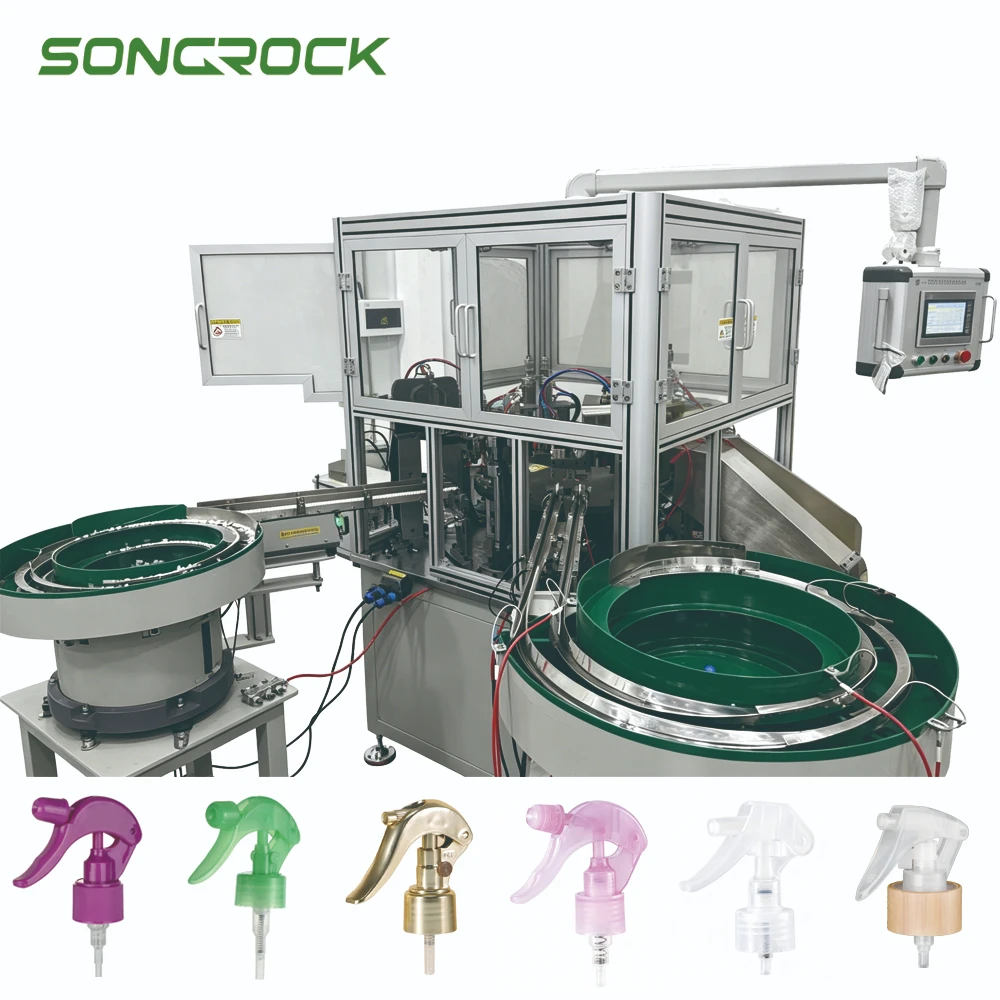

Mini Trigger Sprayer Assembly Machine for Small-Part Automated Production
Songrock develops mini trigger assembly machine systems for compact sprayers used in personal care, car care, fragrance, and light-duty cleaning products. The automation plan focuses on small component feeding, precise orientation, flexible jigs, long-duration operation, and practical changeover, giving manufacturers a clearer path from manual assembly to scalable, repeatable production.
Mini Trigger Assembly Machine
6-Piece Assembly of Mini Trigger Handle Slotting and Tube Insertion Machine SR-MTM-07
Full Automatic Assembly Machine for Mini Trigger SR-MTM-06
Mini Trigger Spray Bar 3-piece Assembly Machine SR-MTM-08
Mini Trigger Stem Trigger Dip Tube 5-Piece Assembly Machine SR-MTM-10
Tube Assembly Machine For Mini Trigger SR-MTM-09
Assembly automation advantages
Compact trigger assembly with controlled small-part handling
Mini trigger products are smaller and more sensitive to part orientation, fixture accuracy, and continuous feeding stability. Manual assembly often becomes slow and inconsistent as production volume increases.

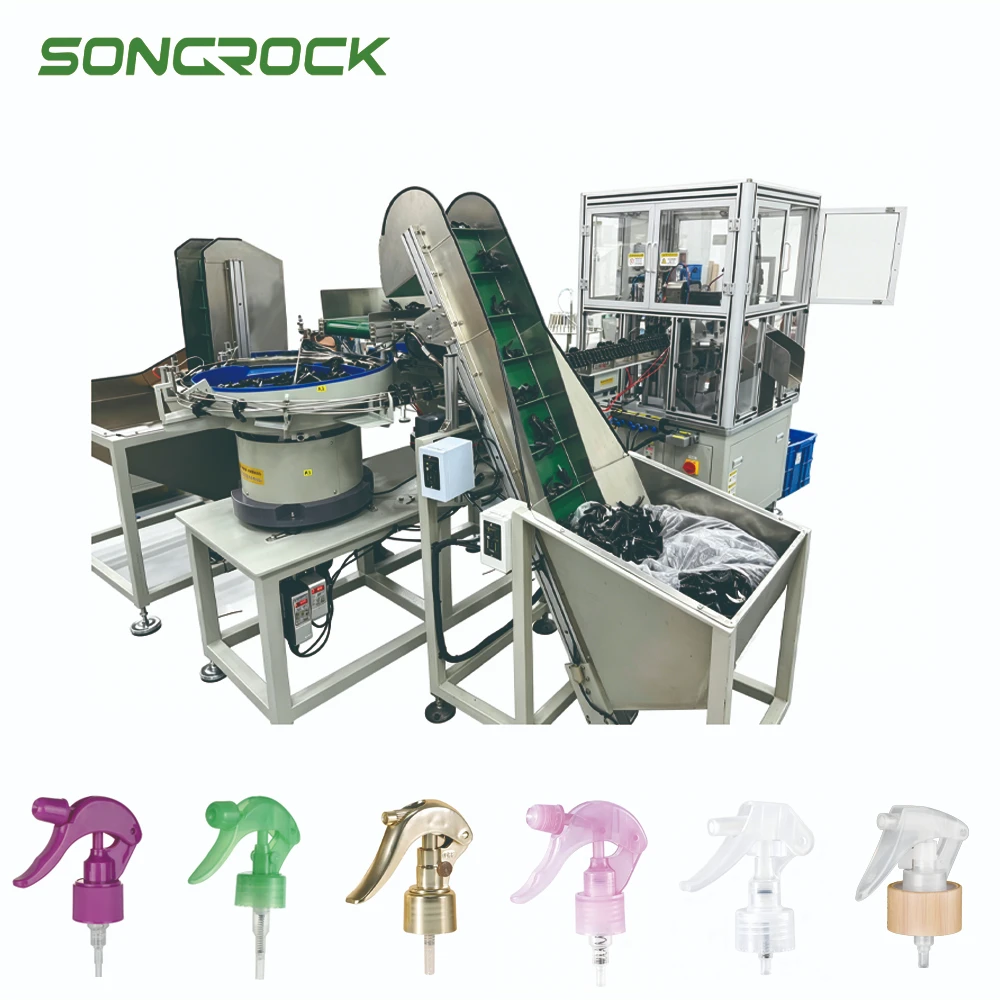

Songrock designs compact automation stations, bowl feeding routes, and product-specific jigs to help mini trigger parts move smoothly through assembly while keeping changeover practical for related sizes.
Customized Solutions
Mini trigger automation tailored to your component size range
We evaluate the body, trigger, spring, nozzle, closure, and tube structure, then recommend the station layout and feeding method for your output target.
If multiple mini trigger sizes share similar structures, Songrock can review jig changeover options to support production flexibility without overcomplicating the equipment.

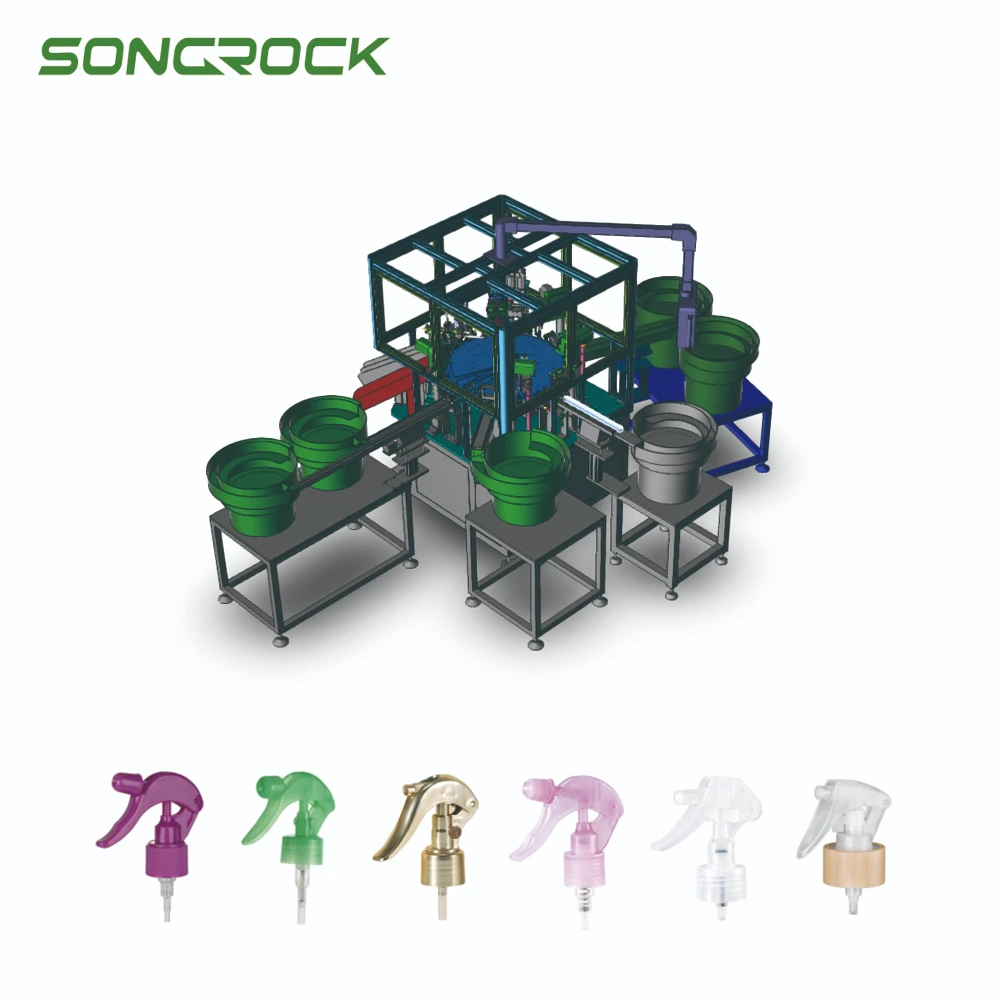

Request Custom SolutionBased on production capacity requirements, we design a customized system featuring the optimal number of rotary table stations, vibratory bowl feeders, and inspection points, along with a rational overall line layout.
Core components are manufactured using high-precision, integrated CNC machining to ensure precise mechanical alignment.
Before shipment, the system undergoes a continuous 24–48 hour full-load test using actual samples, followed by an on-site acceptance inspection by the client.
Professional crating and packaging for shipment.
Product FAQ
Questions before starting this category project
Why does mini trigger sprayer assembly need a dedicated machine?
Mini trigger parts are smaller and more sensitive to orientation, fixture clearance, and feeding vibration. A dedicated machine helps reduce jams, scratches, missing parts, and unstable trigger movement during high-volume production.
Can the mini trigger assembly machine run several compact sprayer sizes?
It may support related sizes if the component structure is similar. Songrock checks body width, trigger shape, spring position, nozzle design, and dip tube handling before confirming shared tooling or quick-change jigs.
What are the main inspection points for mini trigger sprayers?
Common checks include part presence, trigger movement, spring or valve position, nozzle assembly, cap or shroud fit, and tube insertion. Vision, sensor, or mechanical checks can be selected by defect risk.
How do you prevent small parts from feeding incorrectly?
Feeding is planned around part shape, center of gravity, surface finish, and burr risk. Bowl feeder tracks, orientation tooling, reject paths, and sample testing are used to improve stable delivery to the assembly station.
What files or samples are needed for a mini trigger automation project?
Please provide assembled samples, loose parts, product drawings, target speed, required changeover models, defect history, and packaging factory conditions such as voltage, air pressure, and available floor space.
